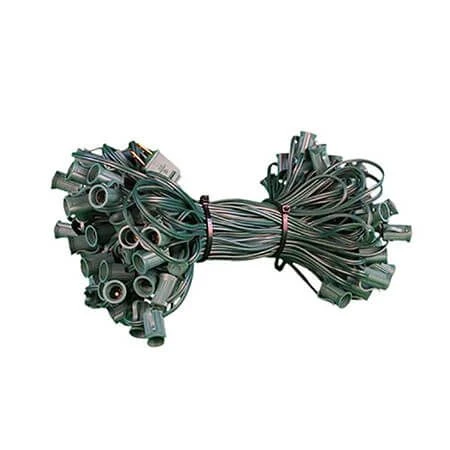

C9 Cord Green Wire 12″ Spacing, 100′, SPT-1

C9 Bulk Light Cord with Molded Plug, 12″ spacing, 100′, Green

• • Socket Type: E17 / C9 (Intermediate Base)
• • String Length: 100′
• • Number of Sockets: 100
• • Socket Spacing: 12″
• • Rating: SPT-1 – .03 inch insulation thickness
• • Wire Gauge: 18
• • Plug Type: Polarized plug
• • Lead Length: 12″
• • Usage: Indoor/Outdoor
• • Case Quantity: 5
• • Case Weight: 16.6 lbs.



Maximum bulb load:

• 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
• 100 (C9) 7-watt incandescent bulbs
• 70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

• Up to 50 feet= 10 amps
• 51-100 feet= 7 amps
• 101-150 feet= 5 amps
• 151-200 feet= 3.5 amps*
• 201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications
